This page will break down the sections of the Nitrous
Master so you can see all the possiblities of the Nitrous
Master.
Main Screen
Baseline Jetting
The top panel is where you can get a quick setup based on Hp and nitrous to fuel ratio.
Enter desired potential HP
and desired nitrous to fuel ratio
Based on your settings in the next panel, the recommended jets are shown here

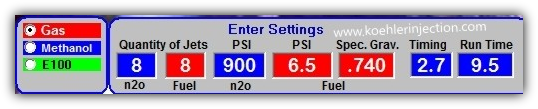

System Settings Panel
The Settings panel allows you to change all the parameters that affect your jetting and tuneup.
These settings affect both the base line jetting panel and the Fine Tune Jetting panel
Choose
Fuel type
Retard
per
100 hp
Fuel
Specific
Gravity
Time
system
is ON
Fuel
PSI
Any amount of
jets for nitrous
and fuel
n2o
PSI
Fine Tune Jetting Panel
This panel allows a finer look at jetting plus it allows you to plug in any oddball jet pattern
and along with your settings in the above panel see where you are headed on your tuneup
input nitrous
and
fuel jet
sizes
Suggested
Retard
Resulting HP
and Nitrous
to fuel ratio
lbs/hr
to
increase
each
EFI
injector
n2o & fuel
used
during
ON
time
Equivalent
jets
for
open
flow
testing

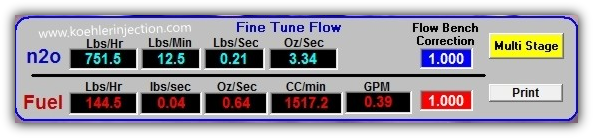

Fine Tune Flow Results
This panel shows the flow rates based on your settings and works in conjunction with the Fine
Tune Jetting panel. The Flow Bench Correction is for those that do some flow testing. If the
sensor or procedure used leads to a different result for a given jet size these corrections, by
percentage, will allow the program to correct the hp, N/F, etc. to the new flow rate.

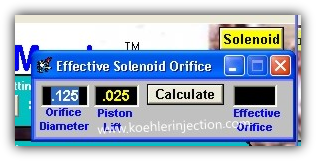

Effective Solenoid Orifice
This pop up window allows you to figure
how well your solenoid may flow.
Multi Stage Systems
This screen allows analyzation of multiple stage systems. It will do both plates and
nozzle systems combined as well as any odd ball combination. It allows you to put
different jets in each nozzle if needed. It figures your new nitrous to fuel ratio every
time you add a stage. You can do all kinds of "what ifs" with this and the main screen.
Nitrous Master gives you the power to analyze your whole
nitrous system combination forward, backwards and sideways.
Nitrous Help Files
The Tuning Files that come with the Nitrous Master are the most comprehensive to date on the
subject of nitrous. There is information here for the beginner and the veteran. More chapters
are being constantly added. The Help file may well be the most valuable part of Nitrous Master.
Tuning Files Chapter Titles
Working the Nitrous Master
Nitrous Master Tips and Tricks
Making a Jet Map
Nitrous. What it is.
So.... you are getting Nawz?
Driving Miss Nitrous
Alcohol
Altitude Concerns
Dataloggers
Open Flow Testing
Nitrous Cylinder Heat
Nitrous Pressure Curve
Fuel and Specific Gravity
Purging
Spark Plugs and Wires
Tuning the Fuel curve
Exhaust Gas Temps
What is wrong?
Wiring diagrams
Solenoid Rebuilding 1
Solenoid Rebuilding 2
Solenoid blueprint
Flow Bench building
Flow Bench Testing
Nozzle System Plumbing
Activation Methods
Alternators
Batteries
Ignition
Launch Control
Starters and Flexplates
Filters
Fuel Pumps
Bottles
Refilling Bottles
Gauges
Hoses
Be your own Nitrous Guru !!
